Southern Machinery designs, builds and services automation for through-hole and surface-mount PCB assembly: auto insertion machines, odd-form feeders, pickup nozzles and grippers, component preparation and ESD handling. 20 products across 5 product lines, each with published specifications, documents and videos.
20 products
Turnkey THT line for mobile charger and adapter PCBs: PCB loader, S3010A radial inserter, S7020 terminal and odd-form inserters, four-head odd-form cell with bowl and bulk feeders, S-WS350 wave soldering and outfeed. Interactive 3D line, specs with sources, videos, catalogs and payback worksheet.
S3000 radial insertion machine for THT PCB assembly: taped radial components inserted at up to 20,000 CPH, 0-360 degree insertion angle, 10 feeder stations and machine-vision hole correction.
S4000 axial inserter: 20,000 CPH published top speed, 5-60 modular feeder stations, any-angle insertion on a servo rotary table, dual jumper-wire feeders, 0.79-2.36 mm PCB, 50 x 50 to 400 x 300 mm boards. Servo-driven, EtherCAT, MES-ready.
S7900 odd-form insertion machine: 2, 4 or 6 servo heads, 0.6-0.8 s per component, 0.6-2.0 mm board, 0-360 degree insertion, four lead-clinching patterns and bowl, tape, tube and tray feeders on one platform. Includes a 36-line THT BOM split and a three-document disclosure table.

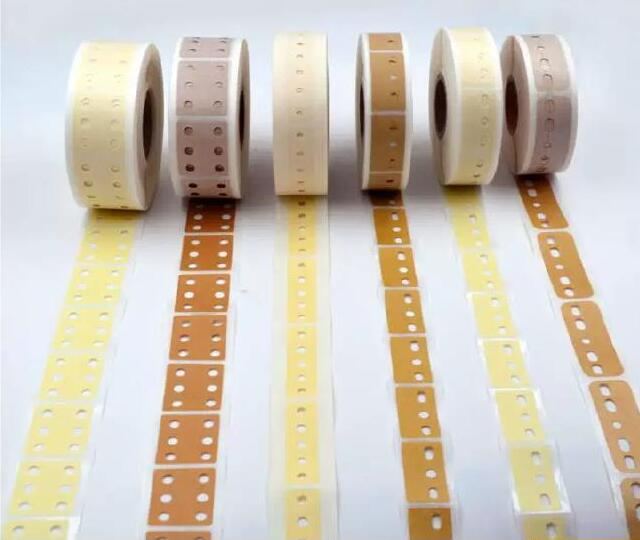

AI radial splicing tape for vertical auto-insertion machines: 3-hole and 5-hole (6-hole on request), masking or kraft paper, high-tack, die-cut both faces, plus a 12.7 / 15.0 mm radial tape splice cutter.
S-300B radial lead molding and taping machine: forms the lead pitch, tests polarity and value, then tapes 180 plus or minus 20 components a minute, boxed or reeled.
Check feeder pick-up position, feeding movement and alignment before the feeder goes back on the SMT line. CCD camera, LCD monitor, X/Y/H adjustment, FUJI NXT fixture. 220 V, 45 kg - all values marked with their source.
High-viscosity AI splice tape for THT radial taped components (capacitors, inductors, diodes) on 12.7 mm and 15.0 mm tape. Masking or kraft paper, die-cut 3/5/6-hole patterns, no residual glue, +15% feeding efficiency. SCT series from Shenzhen Southern Machinery.
Match odd-form THT components to the right feeder and nozzle: 76 real BOM lines, 10 Catalog V03 feeder models (tube, tray, bowl, belt, radial, axial, reel), filters by pitch and body size, free feasibility check.
The SBF1001 vibratory bowl feeder automates bulk component supply for SMT mounters, odd-form inserters and robotic cells: 3 x 3 mm to 50 x 50 mm parts, 10 g to 300 g, 1120 x 460 x 910 mm two-bowl frame, 220 V, 0.4-0.6 MPa air, 0.8 s per feed, +/-0.5 mm feeding precision, optical fibre positioning, optional polarity sorting and lead cutting, 2-hour continuous feeding test and 48-hour ageing test. Published specifications, the commissioning checklist, an interactive payback calculator and eight process notes from Southern Machinery, Shenzhen.
Southern Machinery SMT feeder calibration jig (S-FFCJ10) for FUJI NXT feeders: 50x CCD imaging, X-Y digital micrometers, master-gauge zeroing, +/-0.25 mm pickup verification, 8/12/16/24 mm control zones. Specification, videos, documents and quote.
Southern Machinery designs and machines custom SMT nozzles and gripper nozzles for odd-form parts. JUKI, Yamaha, Fuji, Samsung, Panasonic. Send a component for a quote.
Vacuum, slot, gripper and pipe pickup nozzles for JUKI KE-2010 to KE-2060, FX-1 and 700 series mounters. Tip bores from 0.4 mm to 9.5 mm, copper-alloy body, custom design, one-week lead time.

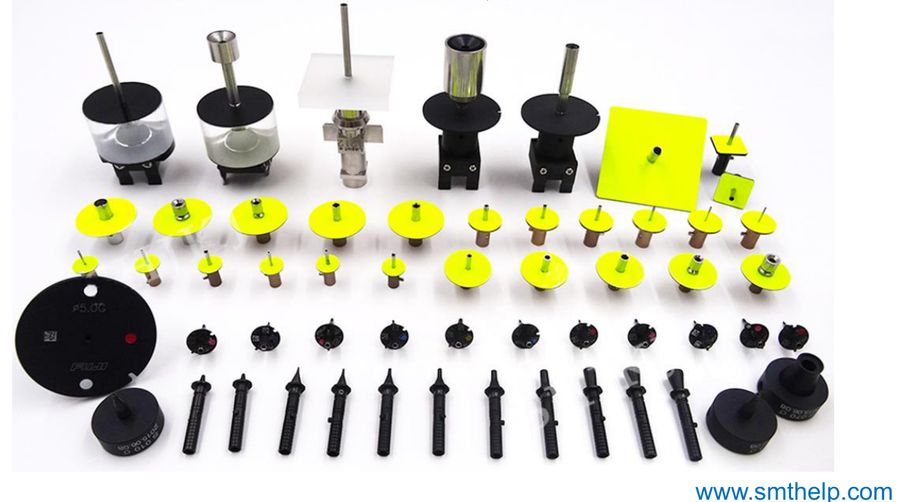

Southern Machinery designs and manufactures FUJI-compatible SMT pick-and-place nozzles — NXT H01/H04/H04S/H08/H12/H08M/H24, CP/QP/IP and custom LED tips from ø0.3 to ø15 mm, ceramic, metal and rubber-pad, with OEM data-matrix and colour-matrix codes. Dimensional drop-in fit, one-day spare-parts lead time, five-day custom design. Request a nozzle match.
Southern Machinery designs and manufactures custom SMT nozzles and gripper nozzles for smart EMS PCB assembly. 99.99% pickup rate, diamond steel and ceramic tips, Plug & Play for JUKI, Yamaha, FUJI, Panasonic. 2-4 week delivery, 50+ countries.
Pickup nozzles for JUKI, Yamaha, Siemens/ASM, FUJI, Panasonic and Samsung/Hanhwa mounters: vacuum, slot, gripper and pipe types, standard and custom design, matched to your head. One supplier for the whole nozzle shelf.
Southern Machinery designs and manufactures Panasonic-compatible SMT pick-and-place nozzles for NPM (D3/W/TT2/VF) and CM (402/602/603) mounters — vacuum, gripper, calibration and custom odd-form tips from 0402 to Φ10 mm, ceramic, metal and rubber. N6100xxxxx part numbers reproduced, dimensional drop-in fit, one-day spare-parts lead time, five-day custom design. Request a nozzle match.
Siemens and ASM SIPLACE pickup nozzles, matched to your 12-star head, C&P20A star or CPP segments. 128 documented 7xx/9xx datasheets, ceramic and custom tips, vacuum-tested. Identify, verify, replicate.

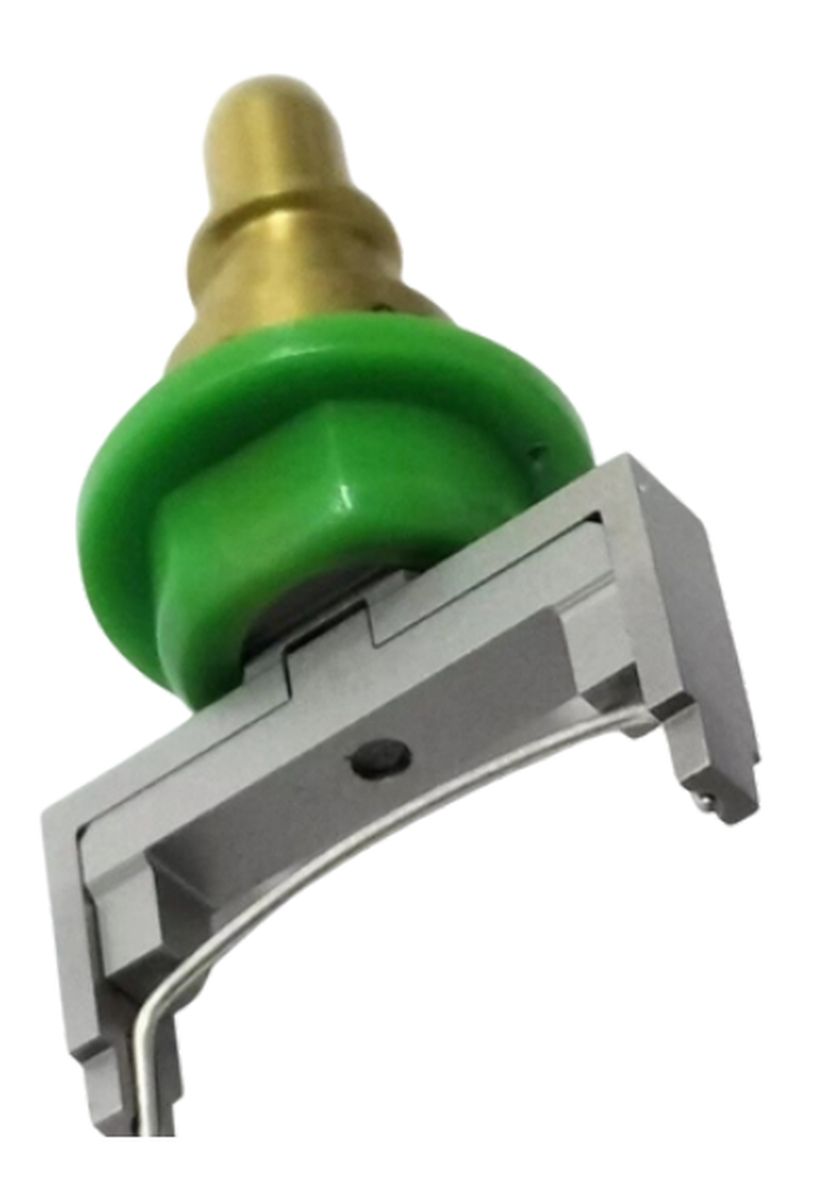

Southern Machinery designs and manufactures Yamaha-compatible SMT pick-and-place nozzles — vacuum, gripper, dispenser and custom odd-form tips from 0402 to Φ15 mm, ceramic to rubber — for YS, YSM, YG, YV, YT and MG mounters. Dimensional drop-in fit, one-day spare-parts lead time, five-day custom design. Request a nozzle match.
Conductive ESD tray with grids: 457 x 289 x 45 mm inside, 20 cells at 91 x 72 mm, detachable anti-static dividers, EVA pad and stacking cover.
