Panasonic-compatible SMT Pick-and-Place Nozzle
The nozzle is the last millimetre between your Panasonic head and a good board. 0402 to Φ10 mm. Calibration-ready. Drop-in fit.
Southern Machinery designs and manufactures Panasonic-compatible SMT pick-and-place nozzles for NPM (D3/W/TT2/VF) and CM (402/602/603) mounters — vacuum, gripper, calibration and custom odd-form tips from 0402 to Φ10 mm, ceramic, metal and rubber. N6100xxxxx part numbers reproduced, dimensional drop-in fit, one-day spare-parts lead time, five-day custom design. Request a nozzle match.
Southern Machinery designs and manufactures Panasonic-compatible SMT nozzles for smart EMS PCB assembly. From the 0.35 × 0.35 mm tip on a 0402 to the Φ10.0 mm large-component nozzle, we match the mounters your line actually runs — the NPM series (NPM-D3, NPM-W, NPM-TT2, NPM-VF) and the CM series (CM402, CM602, CM603). We reproduce the N6100xxxxx part numbers and the legacy 1001N, 110N, 204CN and VVS/VS/S/M/L/LL/LLL naming, in ceramic, metal, metal-plastic and rubber tips, with MELF, octagon, rectangle and Y-shape (王) geometries — including the calibration nozzle your head uses to teach its…
Key features
The tip sets the pick
A mounter does not pick a component; it picks a position through a tip. When the tip is wrong for the part — too wide, too narrow, the wrong material — the head reaches, misses the centre of gravity, and the placement is marginal. Every mispick traces back to a tip that was never matched to the part.
A drifting tip breaks the taught position
Panasonic heads are taught and calibrated to a known pick position. As a tip wears by microns, the real pick centre drifts away from the taught one — and the reject rate climbs while the program looks perfect. Nothing alarms until the calibration nozzle and a fresh tip bring it back into line.
OEM pricing squeezes the spares budget
Genuine Panasonic nozzles are expensive and often carry long lead times, so factories run them past their useful life to avoid a stop. That is a false economy: one stopped head costs more in an hour than a whole set of matched nozzles. A traceable aftermarket source turns the spares line from a hostage into a plan.
Specifications
Figures as published in Southern Machinery documents. Where two sources disagree, both values are shown with their source.
| Product | Panasonic-compatible SMT pick-and-place nozzle (vacuum, gripper, calibration, custom odd-form) |
|---|---|
| Nozzle types | Vacuum nozzle · mechanical gripper nozzle · calibration nozzle · custom odd-form nozzle |
| Tip materials | Ceramic · metal · metal/plastic · rubber · calibration reference |
| Tip size window | 0.35 × 0.35 mm micro-chip tip up to Φ10.0 mm large-component tip |
| Component coverage | 0402 · 0603 · 1005 · 1608 · 2125 · 3216 · 4512 · 4532 · IC · OCTAGON · RECTANGLE · SOP · QFP · MELF · large component |
| Mounter families | NPM-D3 · NPM-W · NPM-TT2 · NPM-VF · CM402 · CM602 · CM603 |
| Part-number format | N6100xxxxx (A / C suffix); legacy 1001N–1006N, 110N–162N, 204CN–256CSN |
| Size series | VVS · VS · S · M · L · LL · LLL tip series across the head range |
| Vacuum bore (inner / outer) | Φ0.6 / Φ0.4 up to Φ5.5 / Φ4.5 and Φ6.0 / Φ4.0 mm |
| Special geometries | MELF · octagon · rectangle · Y-shape (王) · 2-hole |
| Shank & fit | Dimensional match to the head holder — drop-in, no head rework |
| Calibration nozzle | Reference nozzle used to teach and verify the head's pick position |
| Custom design | 5-day design service from a part photograph — no CAD drawing required |
| MOQ | Single-piece replacement to full production batch |
| Spare-parts lead time | Documented one-day spare-parts lead time on the standard family |
| Verification | Tip diameter, bore, concentricity and shank fit checked before ship |
| Cross-reference | Matched against the Panasonic NPM/CM nozzle reference before quotation |
| Other brands supported | Yamaha · JUKI · FUJI NXT · ASM / Siemens · Hitachi · custom |
| Warranty | Against manufacturing defects, per the quoted order terms |
| Contact | info@smthelp.com · WhatsApp +86 13602562576 |
Models, comparisons and open points
Which Panasonic head, which nozzle series (6 rows)
| Panasonic mounter / head | Nozzle series (P/N) | Typical tip / spec | Component sizes covered |
|---|---|---|---|
| NPM-D3 · NPM-W · NPM-TT2 | N6100xxxxx (A / C) | Φ0.6/Φ0.4 → Φ5.5/Φ4.5 · ceramic | 0402 · 0603 · 1005 · 1608 · MELF · IC |
| NPM / CM high-speed head | 1001N – 1006N | 0.65×0.35 → 4.0×3.0 · ceramic / metal | 0603 · 1005 · 1608 · 3216 · SOP/QFP |
| CM402 · CM602 · CM603 | 204CN – 256CSN | 0.35×0.35 → Φ2.4/Φ1.8 · ceramic | 0402 · 0603 · 1005 · 1608 · MELF |
| CM / NPM (110N – 162N) | 110CN – 162SN | Φ0.6/Φ0.4 → Φ10.0 · metal / rubber | 1005 · 1608 · 2125 · 3216 · IC · large |
| VVS · VS · S · M · L · LL · LLL | size series | Φ1.3/Φ0.9 → Φ10.0 · ceramic / rubber | 0603 · 1005 · 1608 · 2125 · 3216 · 4532 · large |
| Calibration / verification | CALIBRATION | reference tip for pick-position teaching | accuracy verification across the bank |
In detail
From your head to a fitted nozzle in six documented moves
Nozzle supply is not catalogue roulette. It is a matching discipline: read the machine and head, cross-reference the part number, choose the geometry and material for the actual component, then verify dimensions before it ever reaches your line. This is the sequence Southern Machinery engineers follow on every Panasonic order, and the same one we invite you to run against your own part master.
- Read the mounter and head. Everything starts with the model and head — NPM-D3, NPM-W, NPM-TT2, NPM-VF, or a CM402, CM602 or CM603. The head fixes the shank, the holder interface and the vacuum take-off, so it is the first fact we record.
- Cross-reference the part number. We match your nozzle against the Panasonic taxonomy — the N6100xxxxx part numbers and the legacy 1001N, 110N, 204CN and VVS/VS/S/M/L/LL/LLL naming — so the replacement carries the same identity your program expects.

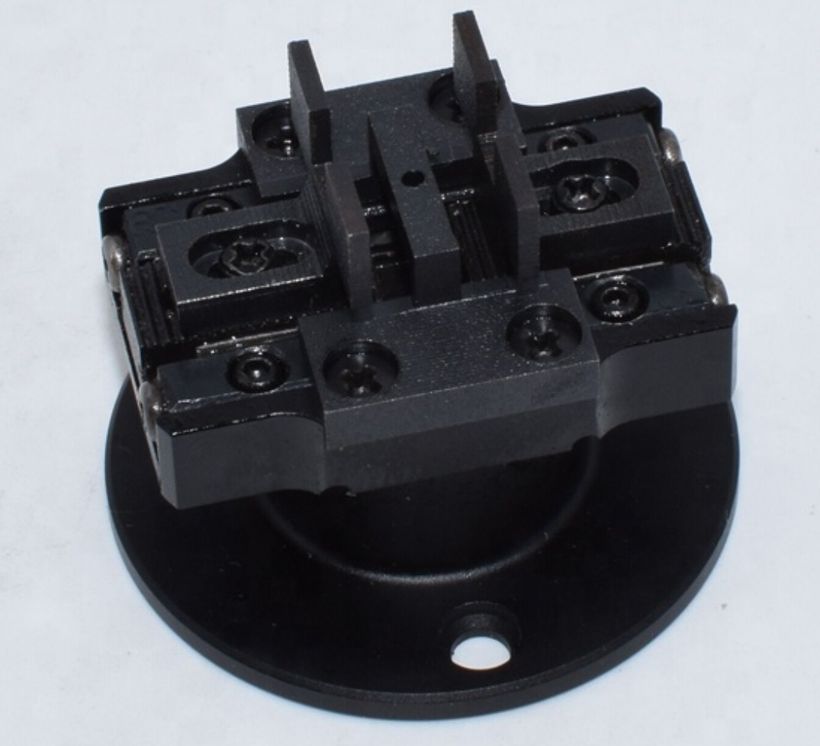

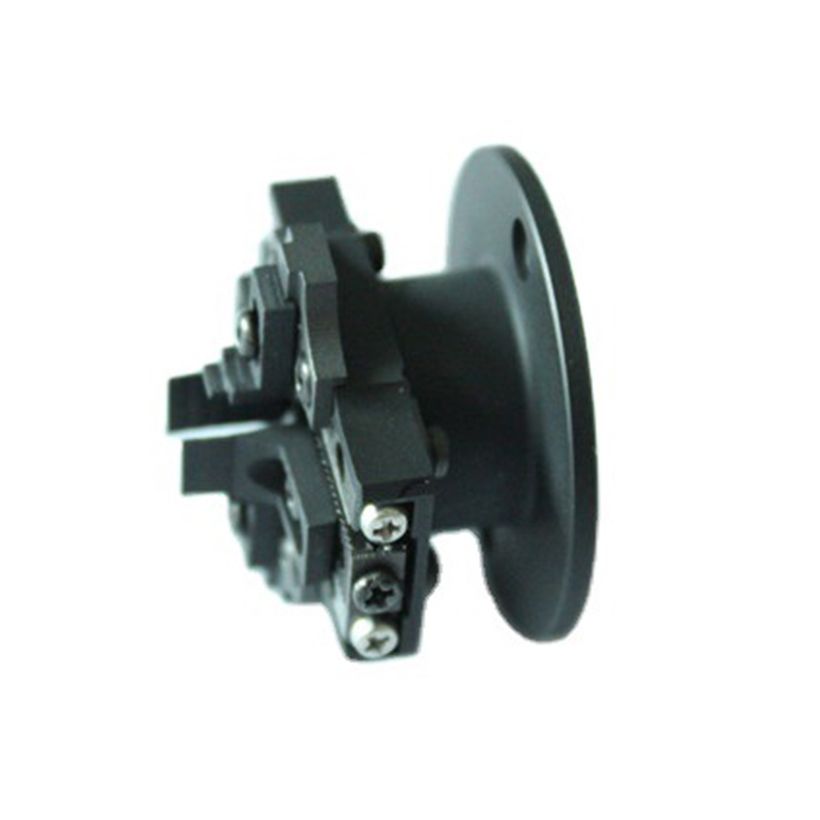

- Choose the tip geometry. The component decides the tip: a 0402 needs the 0.35 × 0.35 mm fine tip, a MELF needs a dedicated MELF bore, a large IC or QFP needs a wide Φ5.0–Φ10.0 tip or a gripper, and an octagon, rectangle or Y-shape (王) part needs the matching profile.
- Select material and pad. Ceramic for fine-pitch, low-static, long-life picking; metal for rugged larger parts; metal-plastic and rubber for sensitive bodies where a hard tip would mark or crack. The document lists all four materials against real part numbers.
- Manufacture and dimensionally verify. Each nozzle is ground to the OEM dimensions and checked — tip diameter, bore, concentricity, shank fit — before it ships. The pick position must be identical on cycle one and cycle five hundred thousand.
- Drop in, calibrate and confirm. Because the fit is dimensional to the head holder, the nozzle drops in without re-tramming; a calibration nozzle verifies the taught pick position. We ask for a first-article pick on your own tape so the match is proven on your line.
Which Panasonic head, which nozzle series
The table below maps the mounter families in the document to the nozzle part-number series and the component sizes they cover. Use it to find your row, then send us the exact part number for a dimensional match.
Configure the nozzle to your part, not the other way round
Once the series is matched, these are the choices that turn a generic tip into the right tip for your component and your wear pattern.
- Tip material selection. Ceramic, metal, metal-plastic or rubber — chosen for the part body, the pick force and the wear life you need.
- Bore & MELF variant. Single or double bore and dedicated MELF tips for glass-bodied components, with octagon/rectangle/Y-shape profiles.
- Calibration nozzle. A reference tip to teach and verify the head's pick position, so a whole bank stays trustworthy between services.
- Spares kits & batch. Named-part-number kits with the right mix of tips on the shelf, so a swap is a morning's work, not a wait.
- Nozzle cleaning program. Pair the nozzles with an S-6200 / SCM24 automatic nozzle cleaner to recover suction and extend tip life between swaps.
- Custom design from a photo. No catalog tip fits? The documented 5-day design service returns a bespoke nozzle concept from three photographs.
How to order a nozzle that fits first time
Getting a matched nozzle is a short, repeatable process. Here is the sequence we run with every new EMS customer, so the part arrives ready to drop into the head.
- Identify the machine and head. Note the mounter model (NPM-D3, NPM-W, NPM-TT2, NPM-VF, CM402, CM602, CM603) and the head position. A photo of the head and the existing nozzle is enough to start.
- Give us the part number. Send the Panasonic nozzle P/N (the N6100xxxxx format or the legacy 1001N / 110N / 204CN / VVS-series name) printed on the nozzle or in your spares list.
- Confirm geometry & material. We check the tip size, bore and material against the component you place, and flag anything that should change for your wear pattern.
- Sample & dimensional verify. For new or custom tips we ship a sample and confirm tip diameter, bore, concentricity and shank fit against the drawing.
- Fit to the head & calibrate. Drop-in fit to the holder — no re-tramming. Run a calibration nozzle and a first-article pick on your own tape to confirm the taught position.
- Maintain & schedule swaps. Track cycle counts, re-verify with the calibration tip, clean the vacuum channel, and reorder from a named part number before the tip drifts into a reject.
What you get when you order from Southern Machinery
Fifteen years of SMT and THT spare parts, quoted and shipped from Shenzhen.
Videos
Clips from the Southern Machinery YouTube channel. Nothing loads from YouTube until you press play.
Catalogues and documents

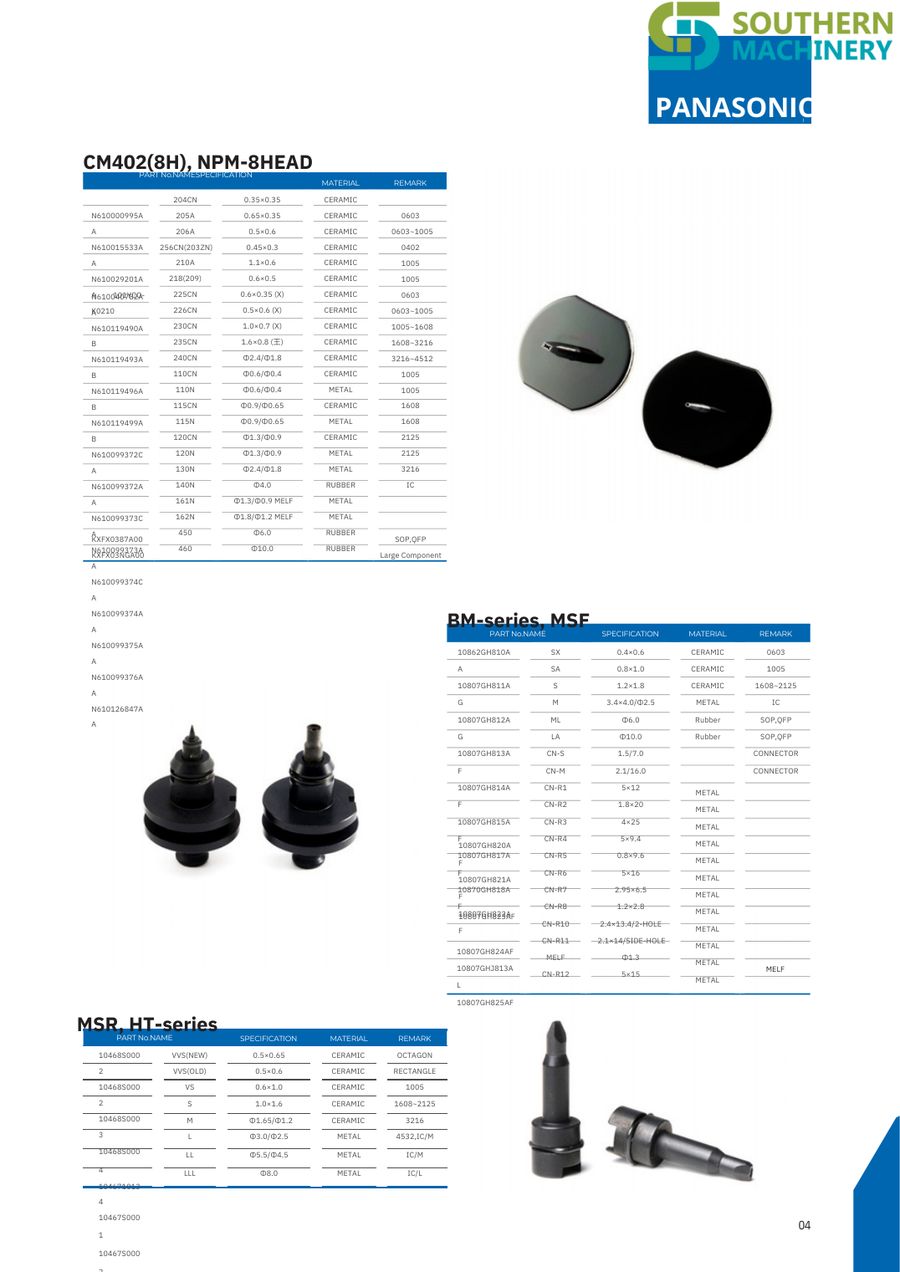

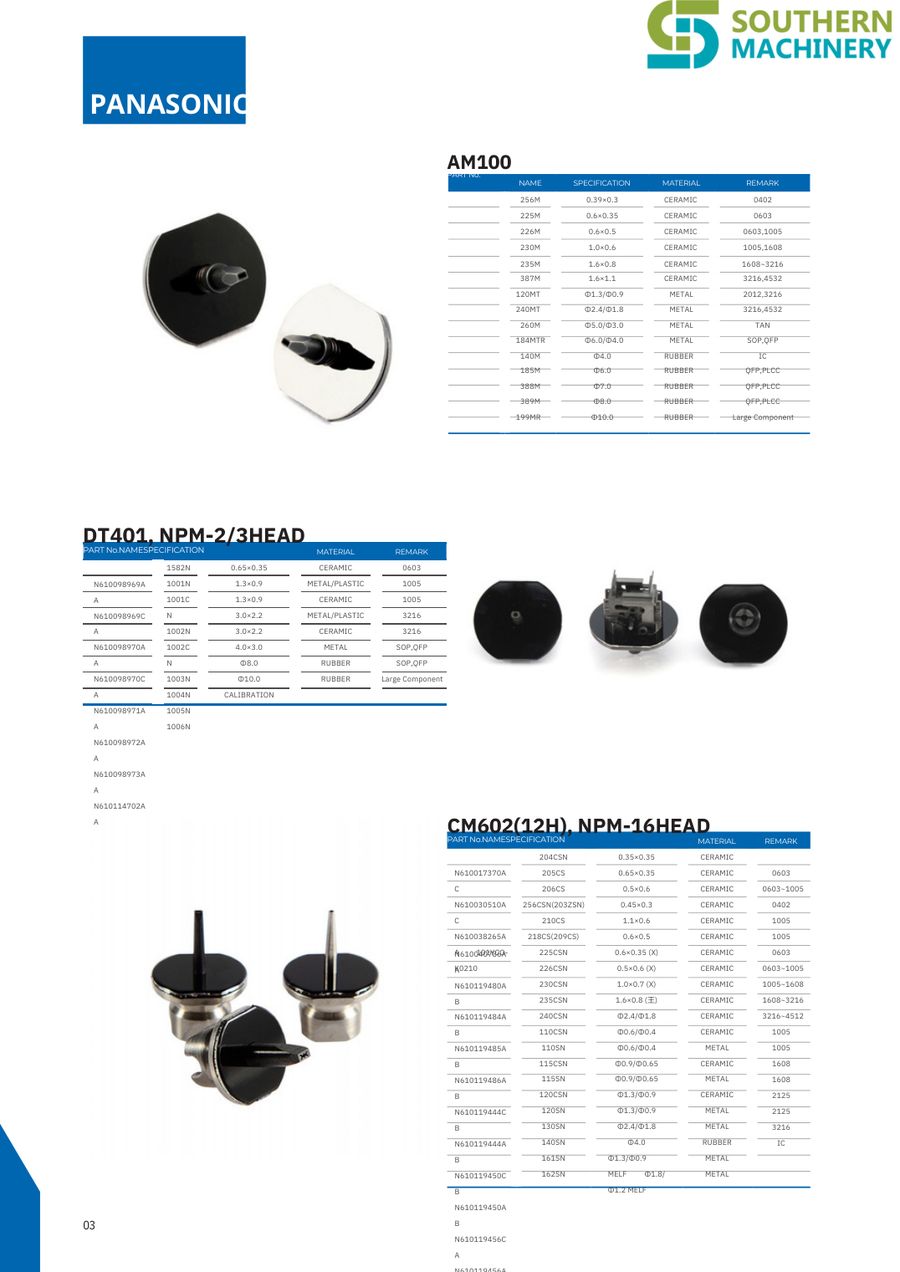

- PDFSMT Nozzle Supplier -Southern MachinerySMT Nozzle Supplier — Southern Machinery
