Mobile Charger THT Auto Insertion & Wave Soldering Line

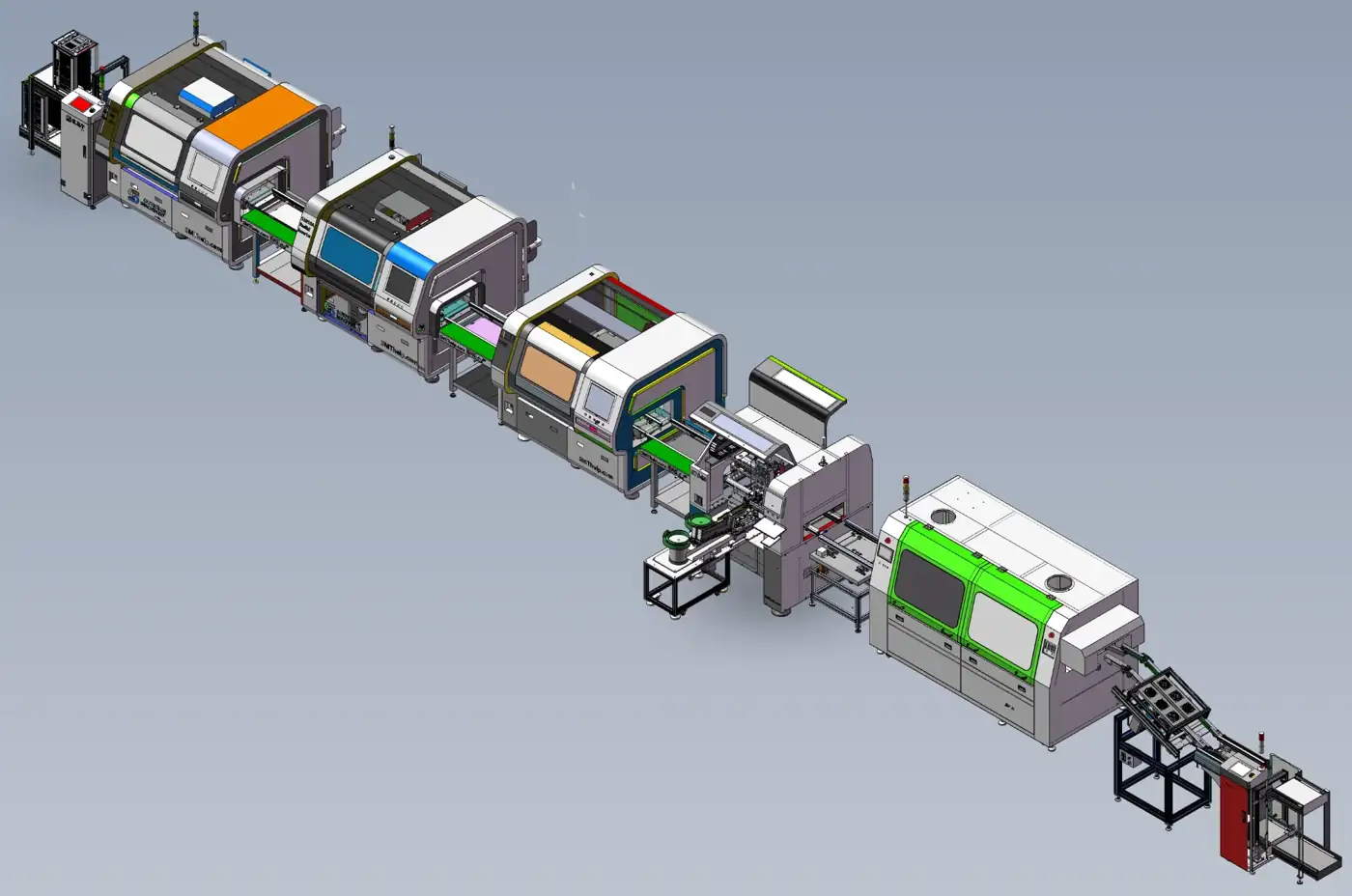

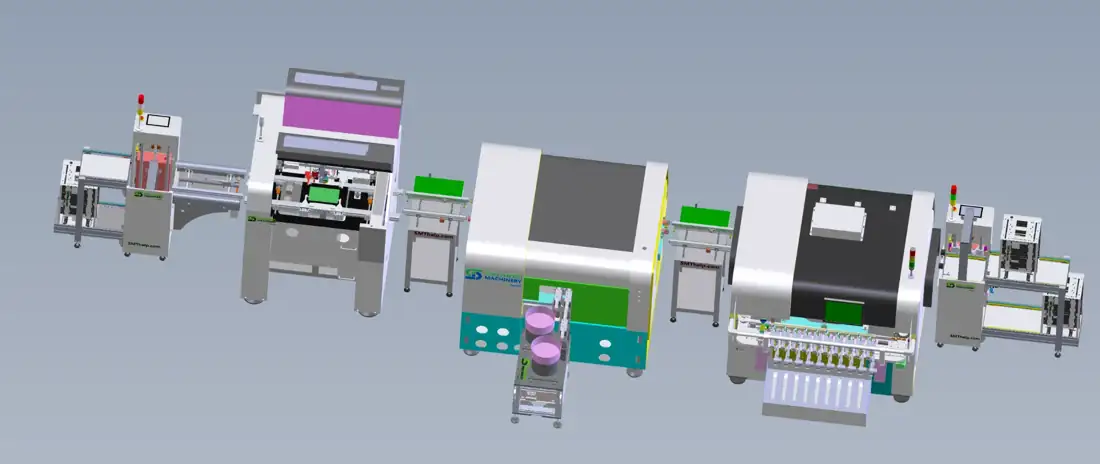

Turnkey THT line for mobile charger and adapter PCBs: PCB loader, S3010A radial inserter, S7020 terminal and odd-form inserters, four-head odd-form cell with bowl and bulk feeders, S-WS350 wave soldering and outfeed. Interactive 3D line, specs with sources, videos, catalogs and payback worksheet.
Radial capacitors, AC pins, USB connectors, transformers and chokes go in by machine, then the board goes straight into wave soldering. One supplier, one line plan, built around your charger BOM.
- 7
- stations in the reference layout
- 12,000 CPH
- S3010A radial, published real throughput
- ±0.05 mm
- four-head odd-form insertion accuracy
- 50–350 mm
- PCB width on the S-WS350 wave solder
Key features
PCB Magazine Loader
Feeds bare or SMT-finished charger boards from magazines into the line, so nobody stands at the line entry.
S3010A Radial Inserter
Inserts taped radial parts: electrolytic capacitors, Y-capacitors, film caps, LEDs and small inductors, with cut and clinch in the same pass.
S7020T Terminal Inserter
Two insertion heads place AC pins, terminals and posts from reel or bowl feeders at any angle in 1° steps.
S7020A Odd-Form Inserter
Two heads for the parts radial machines cannot take: fuses, bridge rectifiers, connectors and tube-packed parts.

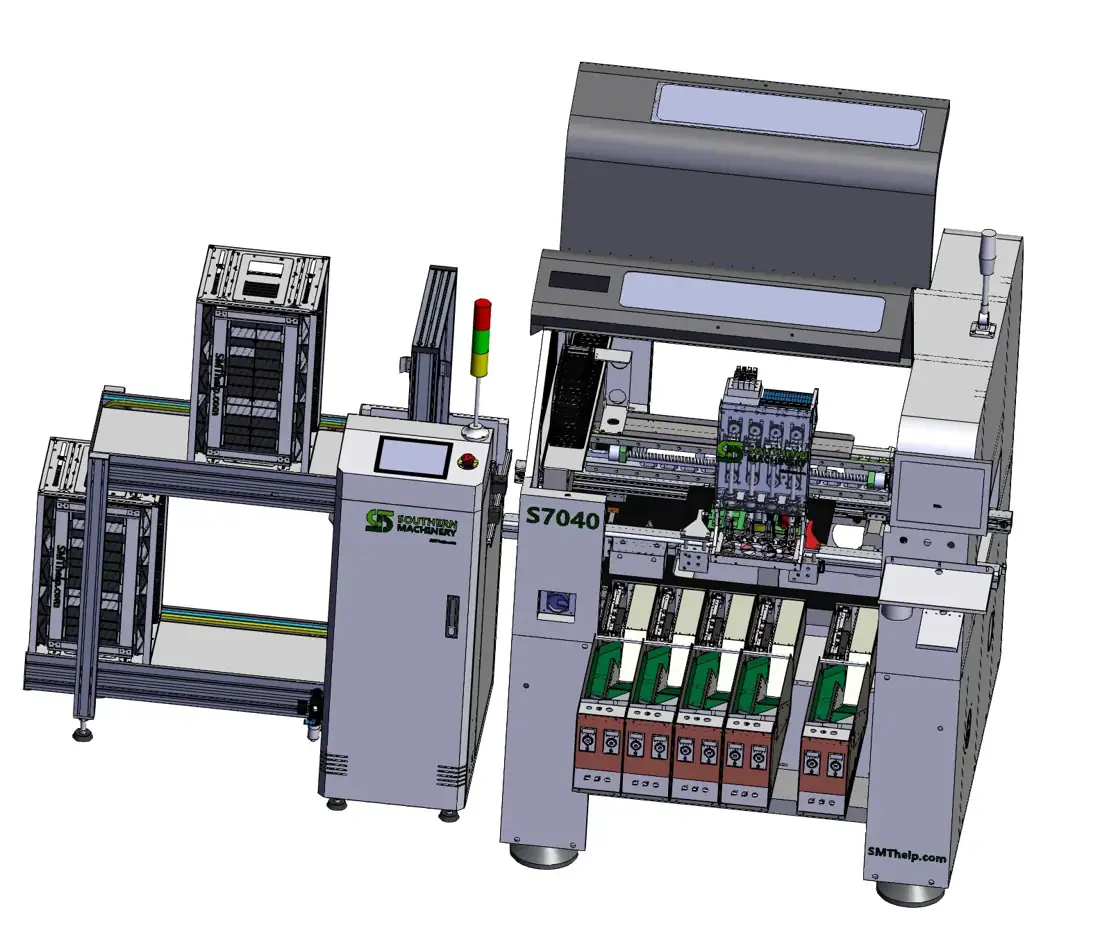

S7040 Four-Head Odd-Form Cell
Four servo heads with bowl and belt bulk feeders handle transformers, chokes and USB connectors, the parts that still cost the most hands.
S-WS350 Wave Soldering
Dual-wave soldering with four-stage hot-air preheat, PC plus Siemens PLC control and a 316 stainless solder pot.
Outfeed Conveyor & Unloader
Cools and collects soldered boards for lead cutting, cleaning, AOI or the test stage.
Specifications
Figures as published in Southern Machinery documents. Where two sources disagree, both values are shown with their source.
| Speed | 12,000 CPH · S3010A Radial Inserter (PDF) |
|---|---|
| Insertion span | 2.5–10.0 mm (incl. 3.5 mm) · S3010A Radial Inserter (PDF) |
| Component height | ≤ 22 mm · S3010A Radial Inserter (PDF) |
| Feeder inputs | 10–100 · S3010A Radial Inserter (PDF) |
| Reliability | 1000 ppm · S3010A Radial Inserter (PDF) |
| Pre-insertion check | Component value and polarity · S3010A Radial Inserter (PDF) |
| PCB size | 50×50 – 350×250 mm · THT line spec page |
| Dimensions (L×W×H) | 1750 × 1300 × 1600 mm · THT line spec page |
| Speed | 12,000 CPH · S7020 Series brochure 2023 |
| Insertion heads | 2 · S7020 Series brochure 2023 |
| PCB size | 380 × 280 mm · S7020 Series brochure 2023 |
| Terminal thickness | 0.5–1.2 mm · S7020 Series brochure 2023 |
| Insertion angle | 0–360°, 1° steps · S7020 Series brochure 2023 |
| Dimensions (L×W×H) | 1700 × 1300 × 1600 mm · S7020 Series brochure 2023 |
| Insertion heads | 4 · Auto insertion solution (PDF) |
| Feeders | 4 (tape or vibration) · Auto insertion solution (PDF) |
| Speed | 4,000 CPH · Auto insertion solution (PDF) |
| Insertion accuracy | ±0.05 mm · Auto insertion solution (PDF) |
| Component size | 3×3 – 30×30 mm · Auto insertion solution (PDF) |
| Component height | ≤ 50 mm · Auto insertion solution (PDF) |
| PCB size | 50×50 – 300×300 mm · Auto insertion solution (PDF) |
| PCB thickness | 0.8–5.0 mm · Auto insertion solution (PDF) |
| Dimensions (L×W×H) | 1200 × 1100 × 1600 mm · Auto insertion solution (PDF) |
| Weight | 1000 kg · Auto insertion solution (PDF) |
| Power | 220 V AC, 0.8 kVA · Auto insertion solution (PDF) |
| Air pressure | 0.4–0.6 MPa · Auto insertion solution (PDF) |
| Control | PC (Lenovo) + Siemens PLC · S-WS350 brochure |
| PCB width | 50–350 mm · S-WS350 brochure |
| Conveyor speed | 0.5–1.8 m/min · S-WS350 brochure |
| Preheat | 1800 mm, 3 PID zones, hot air, 9 kW · S-WS350 brochure |
| Solder pot | 316 stainless, 18 kW, up to 350°C · S-WS350 brochure |
| Solder capacity | ≈ 380 kg · S-WS350 brochure |
| Waves | 2 (high wave 30 mm, flat 5–12 mm) · S-WS350 brochure |
| Soldering angle | 3–7° · S-WS350 brochure |
| Power | 380 V 3-phase, 19 kW · S-WS350 brochure |
| Dimensions (L×W×H) | 4200 × 1350 × 1650 mm · S-WS350 brochure |
| Weight | ≈ 1200 kg · S-WS350 brochure |
| Dimensions (L×W×H) | 850 × 140 × 260 mm · S-MVF01 brochure |
| Weight | 12 kg · S-MVF01 brochure |
| Component size | 3×3×3 – 20×20×20 mm · S-MVF01 brochure |
Show 8 more rows
| Typical parts | Connectors, buzzers, terminal posts, square capacitors · S-MVF01 brochure |
|---|---|
| Feeding cycle | 1.5–2 s · S-MVF01 brochure |
| Insertion accuracy | ±1 mm · S-MVF01 brochure |
| Air pressure | 0.4–0.6 MPa · S-MVF01 brochure |
| Commissioning test | 1,000 continuous feeds; 48 h ageing · S-MVF01 brochure |

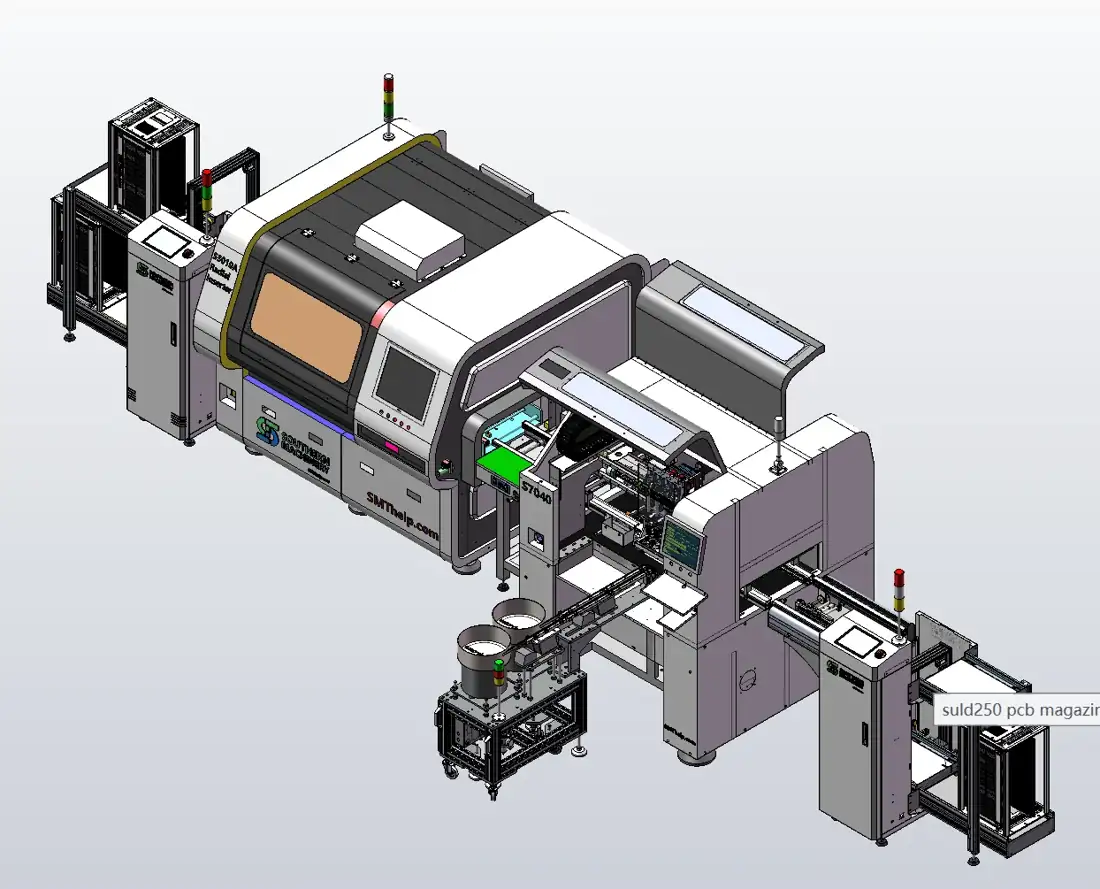

| Dimensions (L×W×H) | 1150 × 750 × 1350 mm (SLD250) · THT line spec page |
| PCB size | 50×50 – 530×250 mm · THT line spec page |
| Dimensions (L×W×H) | 1550 × 750 × 1350 mm (SUL250) · THT line spec page |
Models, comparisons and open points
Which charger part goes on which machine (7 rows)
| Component | Package | Station | Feeding |
|---|---|---|---|
| Electrolytic capacitors (E-cap) | Radial, taped | S3010A | Tape feeder |
| Y-capacitor, film capacitor | Radial, taped | S3010A | Tape feeder |
| AC input pins, terminals | Reel or loose | S7020T | Reel or bowl feeder |
| Fuse, bridge rectifier | Loose or tube | S7020A | Bowl or tube feeder |
| Transformer, common-mode choke | Loose (bulk) | S7040 | Bowl or S-MVF01 bulk feeder |
| USB-A / USB-C connector | Loose or tray | S7040 | Bulk or tray feeder |
| All through-hole joints | PCBA | S-WS350 | Conveyor, titanium fingers |
Where our own documents disagree (10 rows)
| Topic | Figure A | Figure B | How to read it |
|---|---|---|---|
| S3010A speed | 12,000 CPH real throughput (S3010A PDF) | Up to 20,000 CPH (line spec page) | Plan a shift on 12,000; treat 20,000 as a ceiling. |
| S3010A insertion span | 2.5–10.0 mm incl. 3.5 mm (S3010A PDF) | 5–30 mm (line spec page) | Confirm the span for each charger capacitor. |
| S3010A feeder stations | 10 to 100 inputs, scalable (S3010A PDF) | 10 stations (line spec page) | 10 is the base build; more stations are options. |
| S7020T speed | 12,000 CPH (S7020 brochure) | 0.6 s per point (line spec page) | The per-point figure is the realistic planning value. |
| S7020T footprint | 1700 × 1300 × 1600 mm (S7020 brochure) | 1450 × 1300 × 1600 mm (line spec page) | Use the larger figure for floor planning. |
| Odd-form speed | 4,000 CPH, 4 heads (solution PDF) | 0.7 s per part, S7900 (line spec page) | Different platforms; the board decides the real cycle. |
| S-MVF01 feeding cycle | ≤ 1 s (brochure, page 1) | 1.5–2 s (technical parameters) | Size the bulk feeder on 2 s. |
| S-WS350 preheat length | About 2000 mm (feature page) | 1800 mm (spec table) | Same brochure, two pages; confirm on order. |
| S-WS350 pot temperature | Max 300°C (feature page) | Room temp to 350°C (spec table) | Lead-free work sits well below either limit. |
| Model names in the drawing | S350B wave, S7020A odd-form (file name) | S-WS350 wave, S7040 label (brochure, drawing) | Names to be confirmed in the quotation. |
In detail
Which charger part goes on which machine
A typical USB charger or adapter board, split by package and feeding method. Your own BOM decides the final split; send it and we return it marked line by line.
Where our own documents disagree
We print both figures rather than pick the flattering one. Plan on the conservative value and let a trial on your board settle it.
Videos
Clips from the Southern Machinery YouTube channel. Nothing loads from YouTube until you press play.
Catalogues and documents
- 3DSouthern-Machinery-YouTube-Video-Board
- PDFS3010A Radial Inserter
- PDFS3010A Radial Machine Automation Solution
- PDFS7020 Series PIN / Eyelet / Terminal Insertion Machine
- PDFS7020 THT Odd Form Insertion Product Description
- PDFShenzhen Southern Machinery Auto Insertion Solution
- PDFS-MVF01 Belt Bulk Feeder
- PDFS-WS350 Wave Soldering Machine
- PDFPCB Loader / Unloader
- PDFS3010A Radial Insertion Machine Operation Manual
- PDFS7020T Terminal Insertion Machine User's Manual
- PDFTHT PCB Design Guideline 2022
- XLSXTHT Insertion ROI Calculator
- 3DSouthern-Machinery-Product-Catalog-Board
- LINKMachine catalog · file.autoinsertion.com
Engineering notes
The Hidden Ceiling on Hand-Loaded Charger Boards
Your charger line is not slow because people are slow. It is slow because the board waits for hands at the same five parts every cycle. Walk any charger assembly floor at 10 a.m. and count the people bent over insertion benches. On a typical USB charger board, ten to twenty operators place capacitors, pins, a fuse, a…
One Charger Board, Four Ways to Feed It
Feeding decides whether a part can be automated. Here is how each charger component reaches the insertion head. Engineers often ask whether a machine can insert a transformer. Almost always it can. The real question is whether the transformer can arrive at the pick point in the same position every time. On charger…
Why Radial Insertion Comes First on a Charger Line
Capacitors are the most numerous through-hole parts on a charger board. That makes the radial inserter the fastest win. Open a typical USB charger and count its through-hole parts. Electrolytic capacitors, a Y-capacitor, a film capacitor, perhaps an LED and a small inductor: most of them are radial and most of them…
USB Connectors, Transformers and the Parts Hands Still Place
Odd-form parts are where charger lines still spend most of their labour. They are also where a four-head cell pays back fastest. Many charger plants have automated their SMT side and even their radials, yet still keep a bench of operators placing the transformer, the common-mode choke, the fuse and the USB connector.…
Wave Soldering After Auto Insertion: What Changes
Machine-inserted boards arrive at the wave with clinched, consistent leads. That changes how you set up and run the solder process. Wave soldering is where every insertion mistake becomes visible at once: lifted parts, bridged pins, starved joints. On hand-loaded charger boards, the solder operator spends much of the…
Payback on a Charger Line, Using Your Numbers
A payback figure is only useful if every input is yours. Here is a simple way to build one your finance team will accept. A supplier hands over a payback chart showing ten months. Finance asks where the wage figure came from, how many operators are really released and what happens on a short month. The chart has no…
Frequently asked questions
Can one line run both USB-A and USB-C charger boards?
Yes, if the board widths fit the conveyors and each connector has its gripper and feeder. A change of connector is a feeder and gripper change, not a new machine. We check both boards before quoting.
Which charger parts usually stay manual?
Parts with easily deformed leads, no physical orientation feature or a length-to-height ratio under 1:1.2 are poor bulk-feeding candidates. Cable harnesses also usually stay manual. We mark them on your BOM.
Do I need the whole line on day one?
No. Many customers start with the S3010A radial inserter or one odd-form cell and add stations later. The conveyors use SMEMA, so new machines link in.
Is the wave solder ready for lead-free?
The S-WS350 brochure lists lead-free and tin-lead solder, a 316 stainless pot and two waves. Profiles are set on site with your flux and board.
How fast is support if a machine stops?
We reply within 2 hours, send a first plan the same day and a resolution plan within 3 days. Spare parts ship from Shenzhen, and our engineers travel for installation and training.
Can I see my own board run before I buy?
Yes. Send samples of your charger board and parts; we run them on the machines and send a video plus a one-page payback report.
