JUKI SMT Pickup Nozzle

From component drawing to a nozzle that runs

Selecting a pickup nozzle is a short, repeatable sequence: measure the part, pick the tip family, size the bore to the component width, then confirm the shaft, the material and the pick test. Southern Machinery runs this sequence against your actual component, not a catalogue photograph.

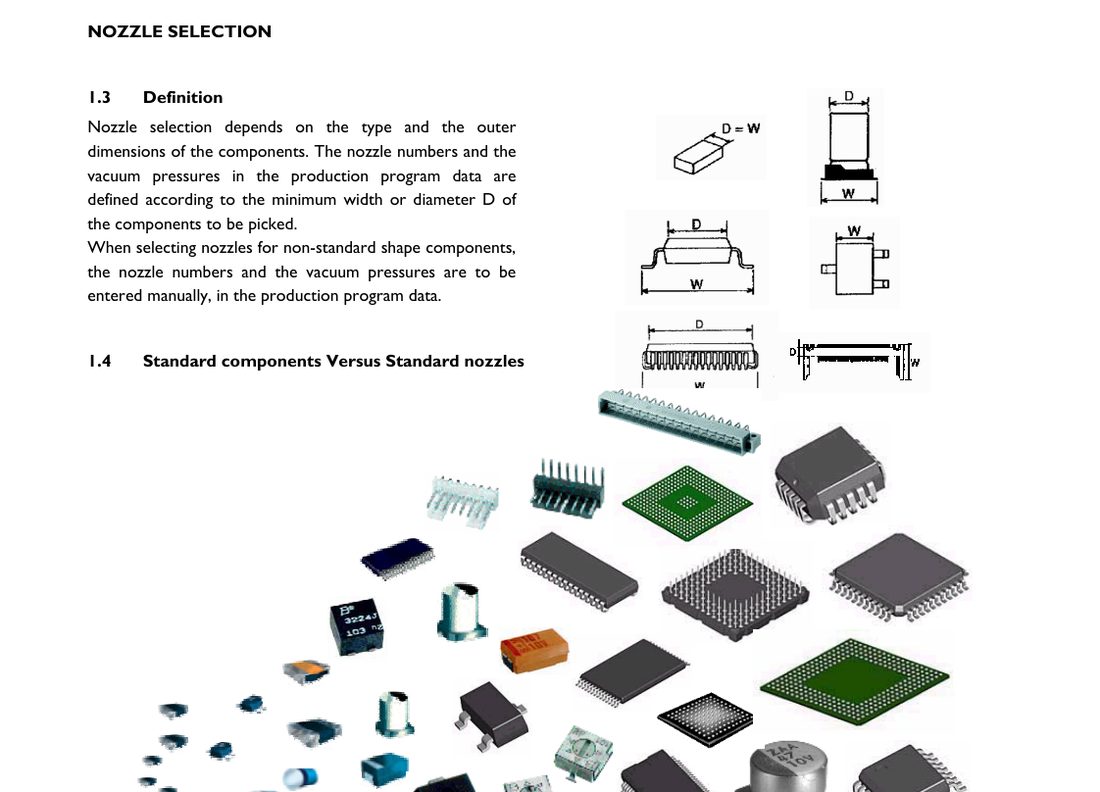

• Measure the component. Record the body width, length, height and weight. The width drives the bore; the weight drives the vacuum.
• Pick the tip family. Flat chips take a vacuum tip. Leads and slots take a slot nozzle; bulky or polarised parts take a gripper or a pipe nozzle.
• Size the bore to the width. The catalogue maps each standard nozzle to an applicable component width, so the bore is chosen from a published band, not by eye.
• Match the shaft and slider. The nozzle must seat on the correct JUKI head and, where used, the standard Automatic Tool Changer shaft.

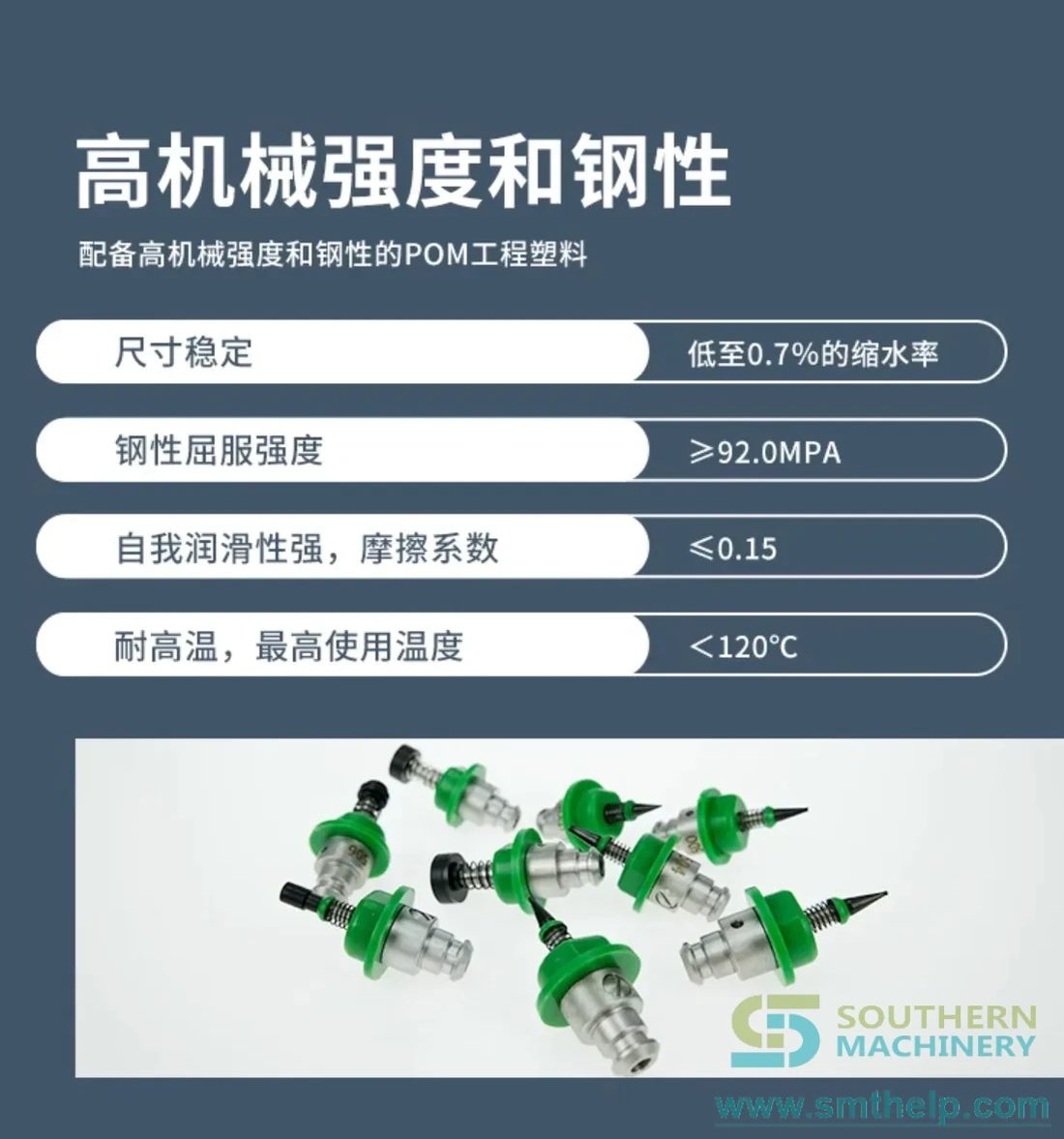

• Choose material and tip. Standard bodies are a copper alloy; fine-pitch tips use polyurethane cups; pipe nozzles use interchangeable rubber tips.
• Machine the tip geometry. Outer and inner diameter, chamfer and slot width are cut to the drawing so the seal forms on the first pick.

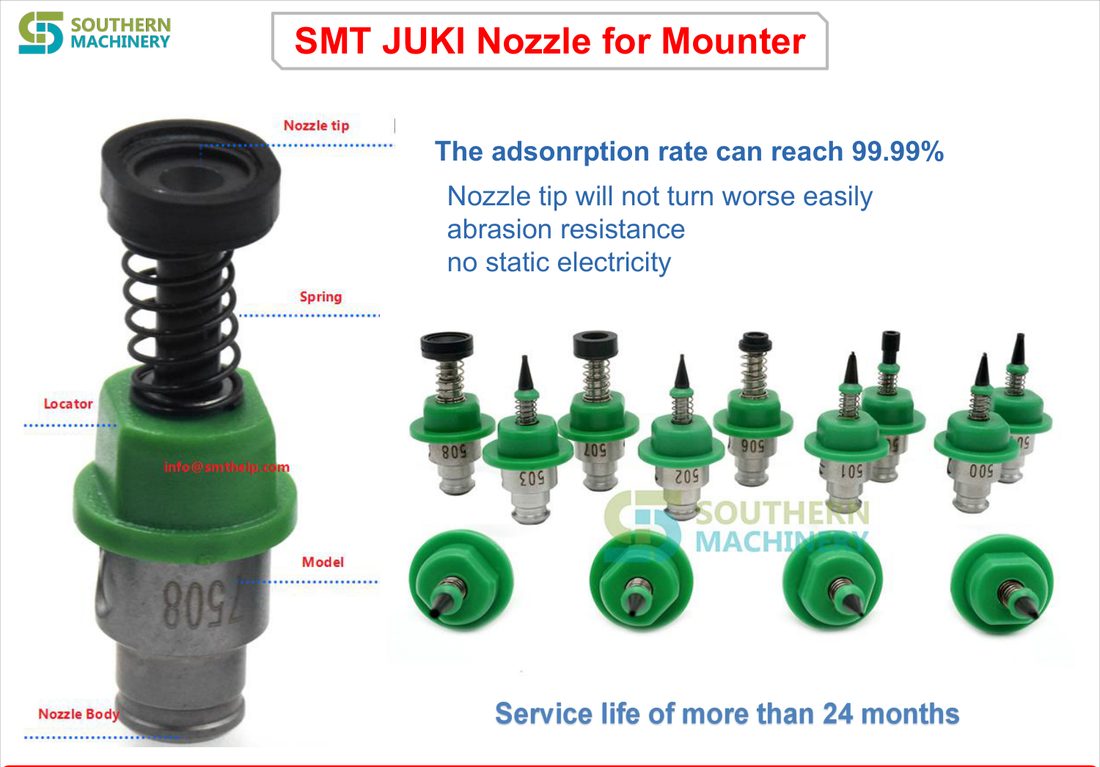

• Test the pick rate. The nozzle is proven on the part before it ships; Southern Machinery quotes a 99.99 percent pickup rate on its own decks.
• Install and teach. Fit to the head, set the pickup height and vacuum, then confirm the pick window on the machine.

Three nozzle families cover the JUKI mounter range

The JUKI application catalogue groups its standard nozzles by head and machine series. Southern Machinery manufactures to those groups and to the special families the same catalogue lists.

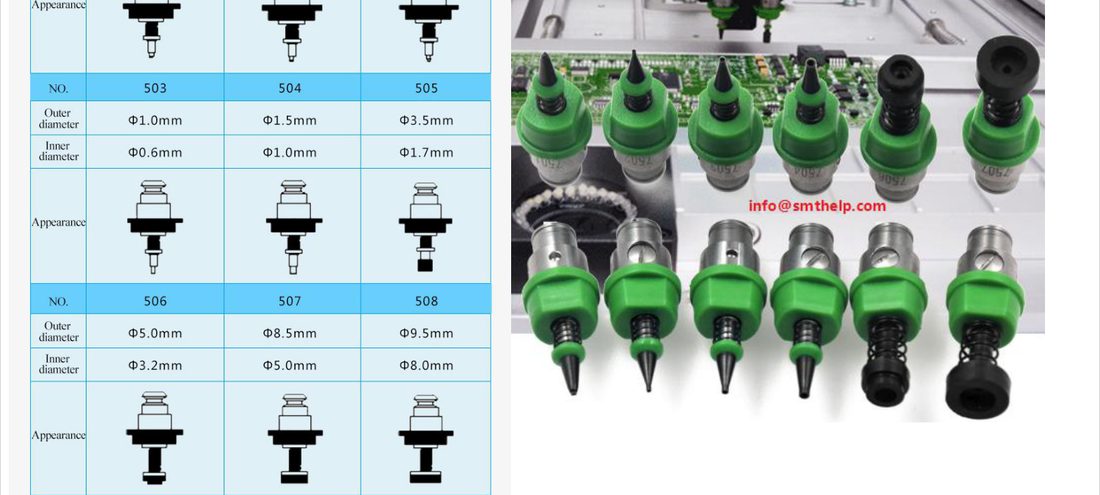

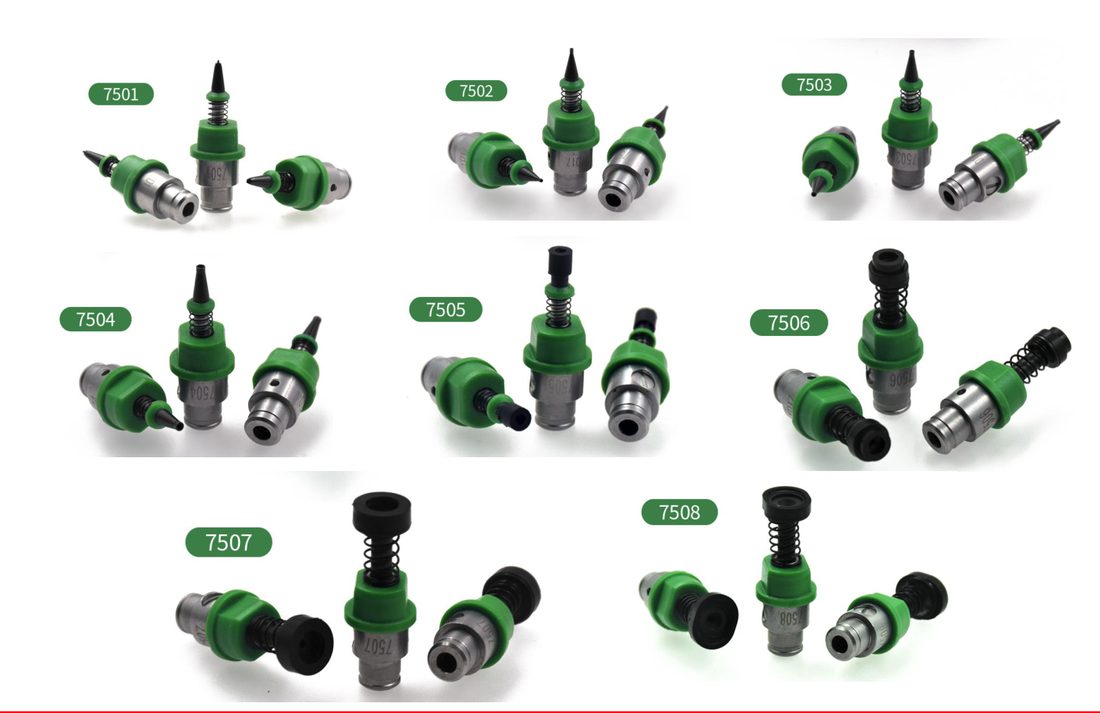

• 500 series - 2000 / FX-1 heads. The 501 to 508 tips serve the KE-2010, 2020, 2030, 2040, 2050, 2060 and FX-1 vision and laser heads, with a bore from 0.7 mm to 9.5 mm. Two part-number revisions exist; see Open points.

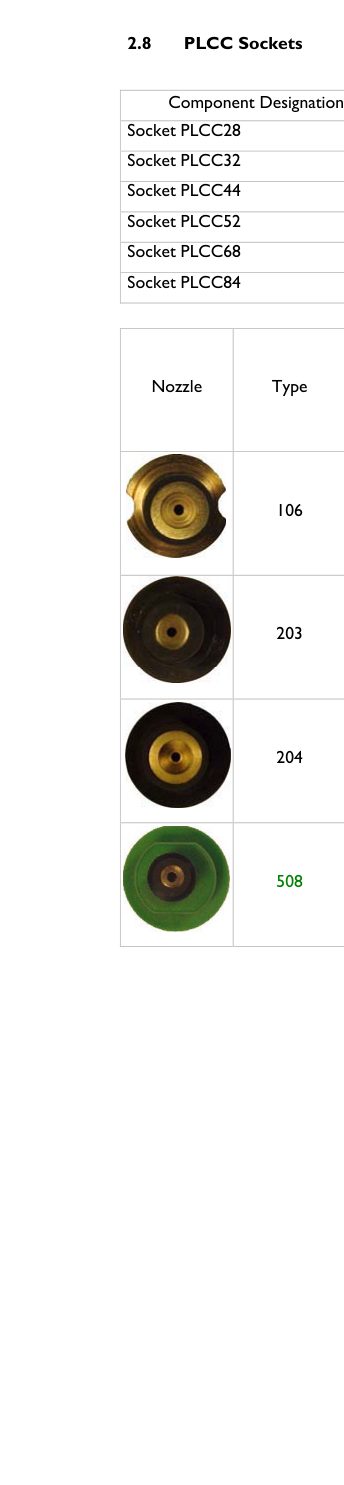

• 1xx and 2xx - 700 series heads. On the 700 series, 101 to 106 run the laser-alignment heads and 201 to 204 the vision-alignment heads, sized from 1.0 mm to 9.5 mm outer bore.

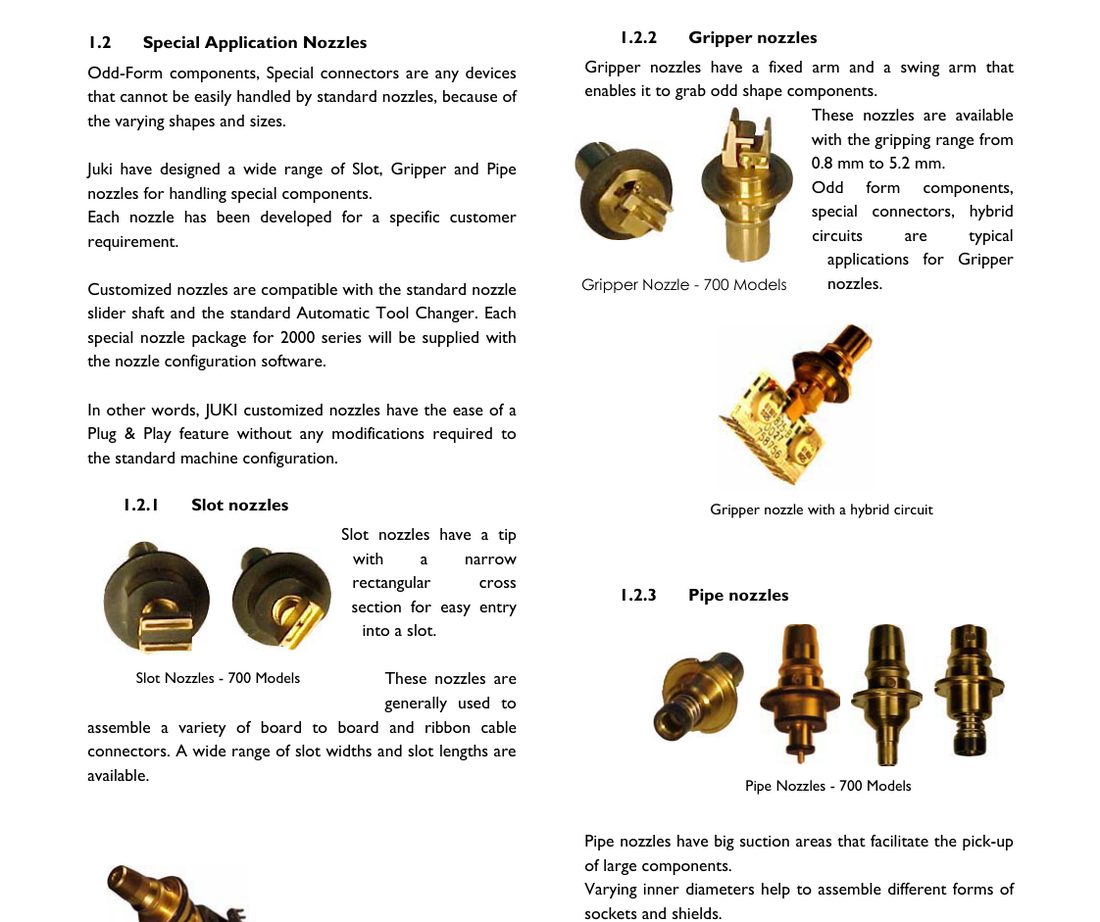

• Slot, gripper and pipe - odd-form. Slot nozzles grip leads, gripper nozzles handle bulky or polarised parts across a 0.8 to 5.2 mm gripping range, and pipe nozzles carry large bodies and sockets, each listed for the 700 and 2000 families.

Where the documents disagree, both values stay on the page

A nozzle table that quietly picks one of two numbers is worth less than one that shows both. Six points below are stated differently across the supplied documents, or are named in only one of them. Confirm each against the current drawing for your head and configuration before you place an order.

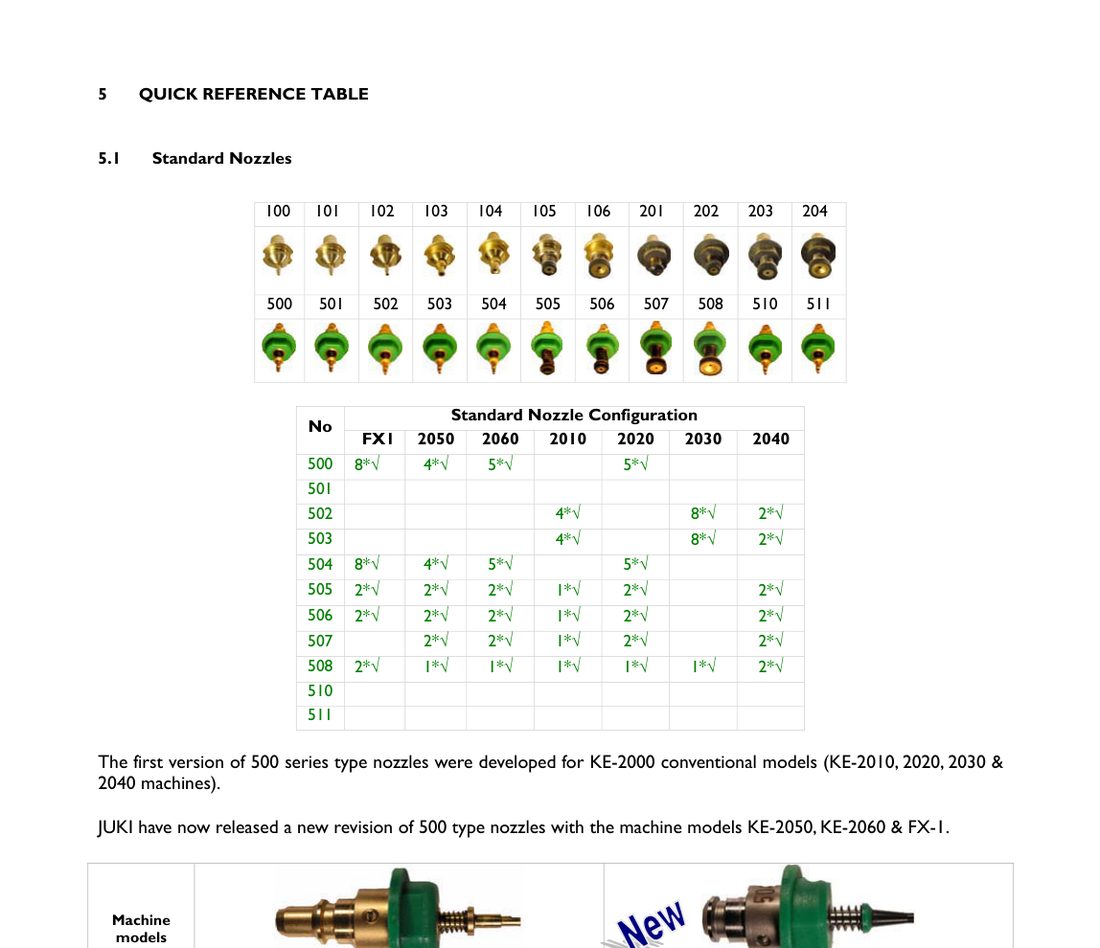

Which nozzle family fits which JUKI mounter

The JUKI application catalogue maps machine series to nozzle type. The table summarises that mapping and the two 500-series part-number revisions so you can check fit before you specify.

What you choose when you order a nozzle

Each of these is a documented family in the catalogue or the Southern Machinery decks, not a custom engineering project.

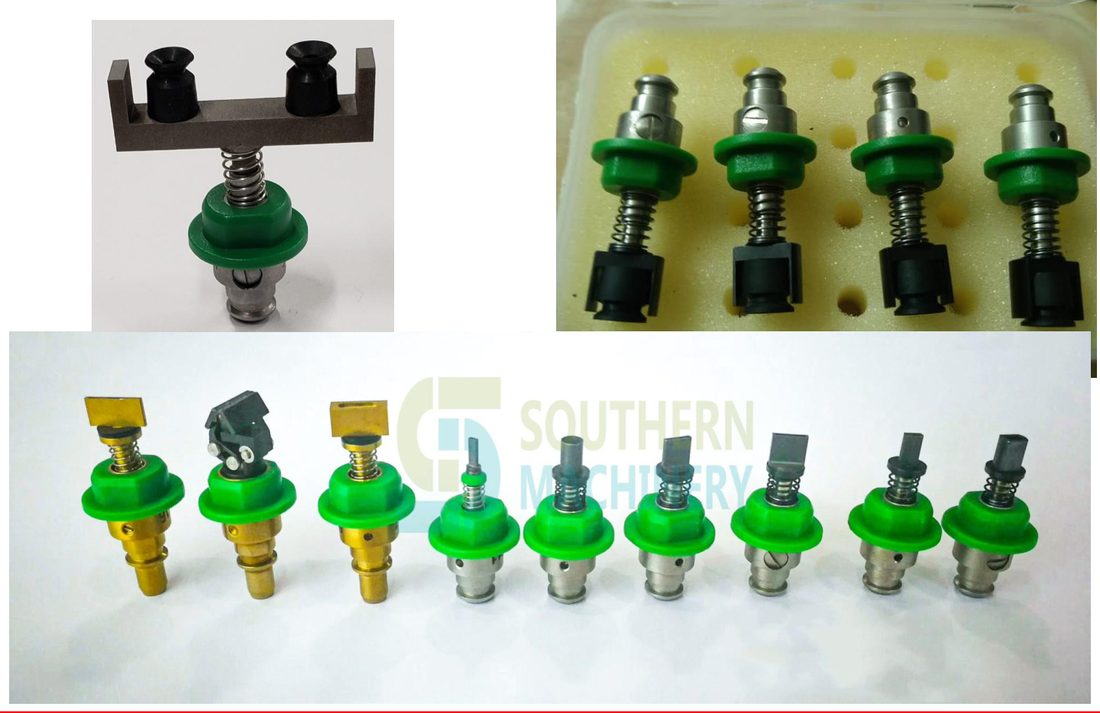

• Standard vacuum tips. The 500, 1xx and 2xx families for flat chips, MELF, tantalum, SO, QFP and BGA, sized by component width.
• Slot nozzles. For leaded and connector parts; slot width and length are published per type across the 700 and 2000 families.

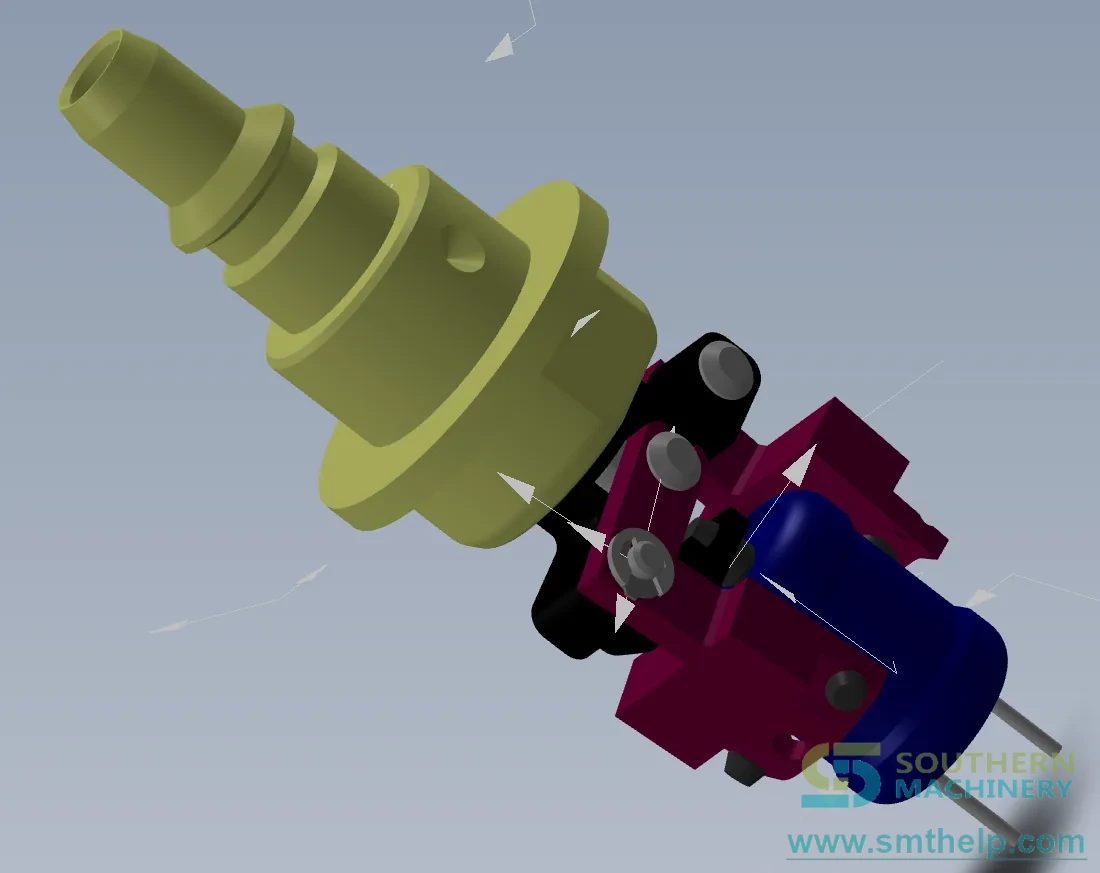

• Gripper nozzles. Mechanically clamp bulky or polarised parts across a 0.8 to 5.2 mm gripping range instead of relying on vacuum alone.
• Pipe nozzles. For large bodies, sockets and shields, with interchangeable rubber tips to protect the part.
• Automatic Tool Changer fit. Custom nozzles are built to the standard nozzle slider shaft and the standard Automatic Tool Changer.

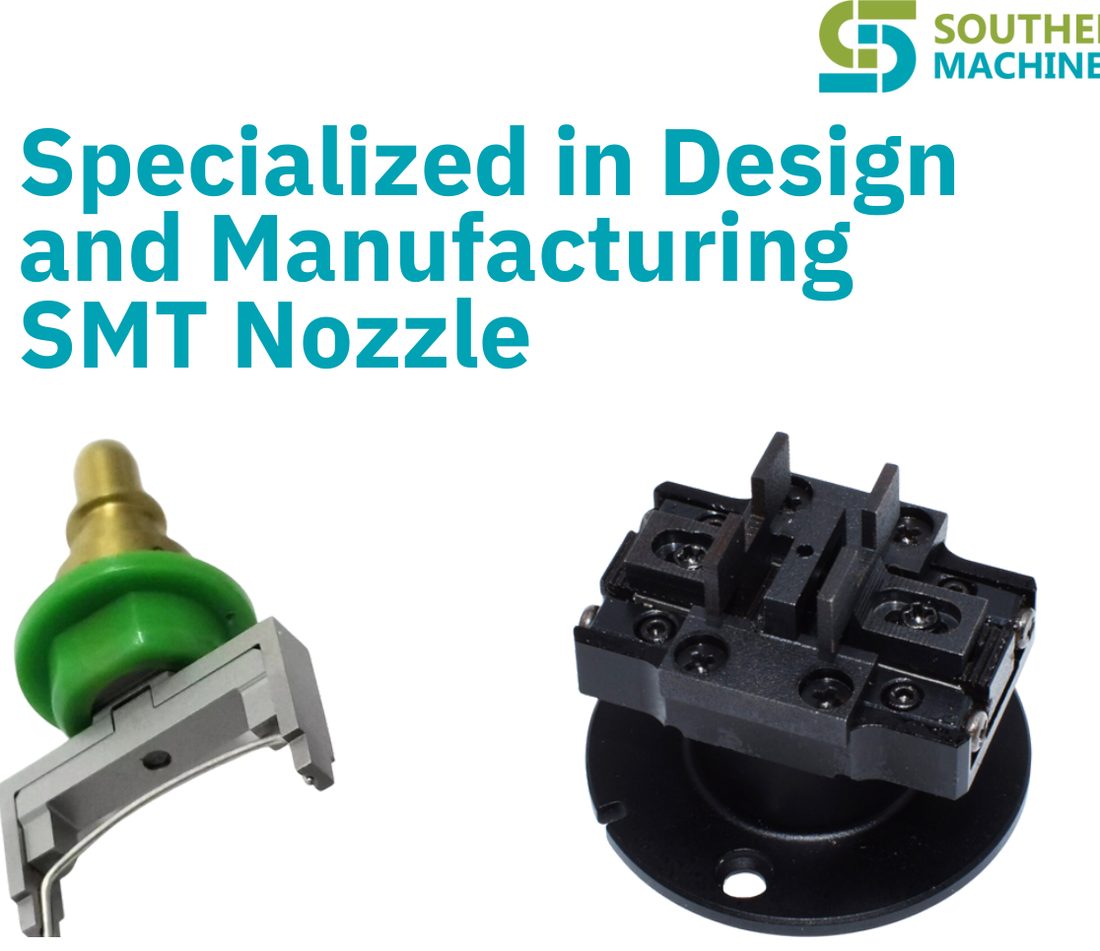

• Custom design. Southern Machinery designs and manufactures to your drawing when a standard tip does not suit the component.

Six steps from nozzle in hand to first clean pick

A nozzle only performs when it is seated, bored and taught correctly. These are the six steps Southern Machinery uses when a nozzle goes onto a head.

• Confirm the family. Check the nozzle type against your head series - 500 for 2000 / FX-1, 1xx / 2xx for the 700 series.
• Check the part revision. On the 500 series, confirm whether your machine takes the original or the new part number before fitting.
• Seat on the shaft. Mount on the correct slider and, where used, the Automatic Tool Changer; confirm the nozzle runs true.
• Set the bore to the part. Match the tip bore to the component width band so the vacuum seal forms on the first pick.
• Teach pickup height and vacuum. Set the pickup height, dwell and vacuum level on the machine, then verify the pick window.
• Prove and log. Run the part, record the mis-pick rate, and set a replacement trend before wear becomes a stop.

What happens after the nozzles land

Southern Machinery designs and manufactures in Shenzhen and supports the parts it ships.
